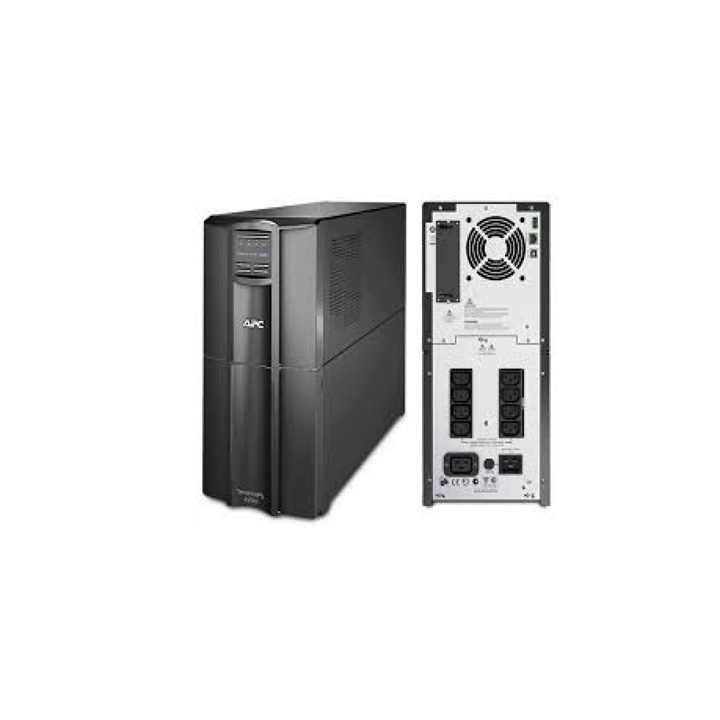

Bộ lưu điện APC Smart SMT2200I (2200VA/1980W)
Công suất:(2200VA/1980W)
12 tháng
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
Output |
|
Output power capacity |
1.98kWatts / 2.2kVA |
Max Configurable Power (Watts) |
1.98kWatts / 2.2kVA |
Nominal Output Voltage |
230V |
Output Voltage Note |
Configurable for 220 : 230 or 240 nominal output voltage |
Output Voltage Distortion |
Less than 5% at full load |
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
Topology |
Line Interactive |
Waveform type |
Sine wave |
Output Connections |
(1) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) |
Transfer Time |
6ms typical : 10ms maximum |
Input |
|
Nominal Input Voltage |
230V |
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections |
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A |
Input voltage range for main operations |
160 - 286V |
Input voltage adjustable range for mainsoperation |
151 - 302V |
Number of Power Cords |
1 |
Other Input Voltages |
220, 240 |
Batteries & Runtime |
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time |
3hour(s) |
Replacement Battery |
|
Expected Battery Life (years) |
3 - 5 |
RBC Quantity |
1 |
Runtime |
View Runtime Graph (Available in Technical Tab on site) View Runtime Chart (Available in Technical Tab on site) |
Efficiency |
View Efficiency Graph (Available in Technical Tab on site) |
Communications & Management |
|
Interface Port(s) |
SmartSlot |
Control panel |
Multi-function LCD status and control console |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) |
Yes |
Available SmartSlot™ Interface Quantity |
1 |
Surge Protection and Filtering |
Surge energy rating 365Joules |
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical |
|
Maximum Height |
435MM, 43.5CM |
Maximum Width |
197MM, 19.7CM |
Maximum Depth |
544MM, 54.4CM |
Net Weight |
48.8KG |
Shipping weight |
61.9KG |
Shipping Height |
699MM, 69.9CM |
Shipping Width |
381MM, 38.1CM |
Shipping Depth |
762MM, 76.2CM |
Color |
Black |
Physical |
Units per Pallet 9.0 |
Environmental |
|
Operating Temperature |
0 - 40 °C |
Operating Relative Humidity |
0 - 95 % |
Operating Elevation |
0-3000meters |
Storage Temperature |
-15 - 45 °C |
Storage Relative Humidity |
0 - 95 % |
Storage Elevation |
0-15000meters |
Audible noise at 1 meter from surface ofunit |
45.0dBA |
Online thermal dissipation |
275.0BTU/hr |
Protection Class |
IP 20 |
