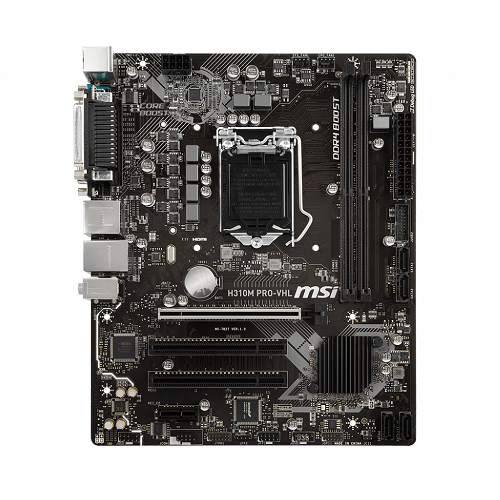

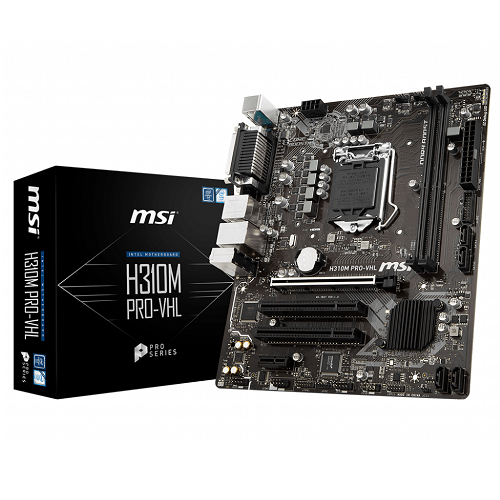

Mainboard MSI H310M PRO - VHL -Hàng Chính Hãng

Tên gọi

MSI H310M PRO - VHL

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® H310

Bộ nhớ (RAM)

• 2 x DDR4 memory slots, support up to 32GB

• Supports DDR4 2400/ 2133 MHz (by JEDEC)¹

• Supports DDR4 2400/ 2133 (by XMP OC)¹

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

• Không hỗ trợ

Khe cắm mở rộng

• 1 x PCIe 3.0 x16 slot

• 1 x PCIe 2.0 x1 slot

• 2 x PCI slots

LAN / Wireless

• 1 x Realtek RTL8111H Gigabit LAN controller

Âm thanh

• Realtek^® ALC887 Codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x Clear CMOS jumper
• 2 x Front panel connectors
• 1 x Serial port connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Front panel audio connector
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector

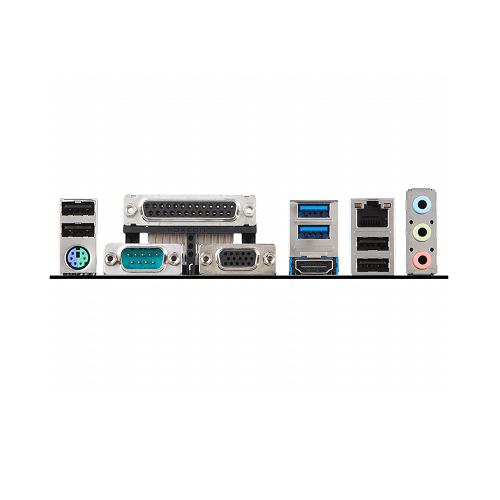

Cổng kết nối (Back Panel)

1. USB 2.0 Port
2. Parallel Port
3. USB 3.1 Gen1
4. LAN Port
5. HD Audio Connectors
6. PS/2 Combo Port
7. Serial Port
8. VGA Port
9. HDMI Port
10. USB 2.0 Port

Công nghệ độc quyền

• DDR4 Boost
• VR Ready
• EZ Debug LED

Phụ kiện đi kèm

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
