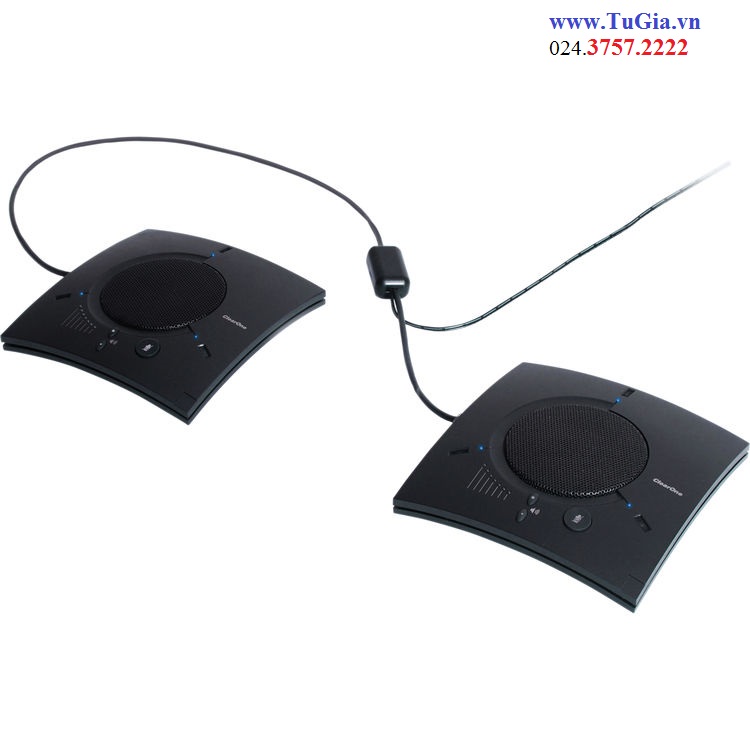

Thiết bị hội nghị Speaker Phone ClearOne CHAT Attach 150 USB IP Conference Phone

System Requirements:

• Microsoft Windows 7, 8, 10 (For any firmware upgrades, use Win7)
• Mac OS

Connections:

• USB: • Version 2.0 Compatible • Type: Mini-B Female
• Keyed Connector: • Keyed RJ-45 (8-conductor)

Line Input/Output via vC Breakout Box (BOB):

• Frequency Response: • 20Hz - 20 kHz +/- 1 dB • Maximum Level: +6 dBu • Input Impedance: 10 kΩ • Output Impendance: 50 Ω

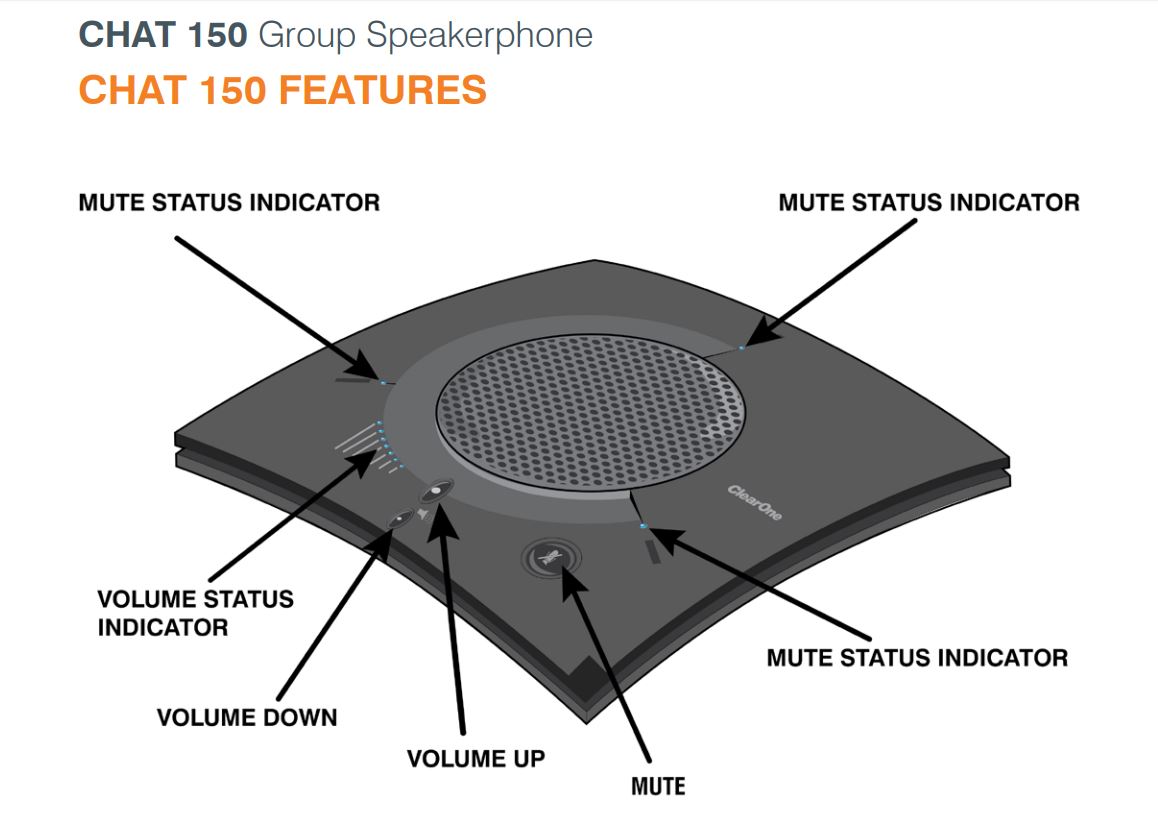

Controls:

• Volume Up
• Volume Down
• Microphone Mute

Audio:

• Speaker: • Bandwidth: 190 Hz - 20 kHz • Max Output Level: 85 dB SPL @ 1 foot (0.30 meter)
• Microphone: • Bandwidth: 50 Hz - 7.75 kHz

Environmental:

• Operting Temperature: • 41 - 104° F (5 - 40° C)

Processing:

• Full Duplex
• Distributed Echo Cancellation (D.E.C.)®
• Noise Cancellation (NC)
• Automatic Level Control (ALC)
• Line Echo Cancellation (LEC) - Selectable
• First-Mic Priority

Power:

• USB: • 5 VDC @ 500 mA Maximum
• External: •Input: 100 - 240 VAC •Output: 9 VDC @ 560 mA •Tip: Power •Ring: Ground

Mechanical:

• Dimensions (W x D x H): • 7.4” x 7.4” x 1.8” (18.8 cm x 18.8 cm x 4.6 cm)
• Weight: • 1.17 Ibs (0.53 kg)

Compliance:

• RoHS
• REACH
• FCC Class A Part 15
• CES-003
• CE Listed
• UL Listed

Model numbers:

• 910-156-200 CHAT 150 USB: • Single CHAT 150 and Connecting Cable

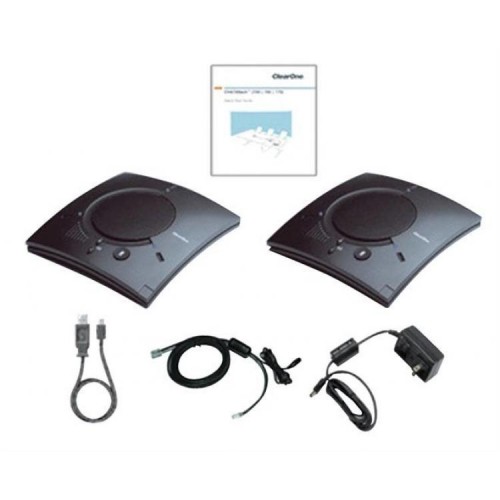

• 910-156-200-00 CHATAttach 150: • Two (2) CHAT 150 Devices, Connecting Cables and Power Supply
• 910-156-222 CHAT 150 Avaya: • CHAT 150 and Connecting Cable to Avaya Enterprise Phone
• 910-156-220 CHAT 150 Cisco: • CHAT 150 and Connecting Cable to Cisco Enterprise Phone
• 910-156-230 CHAT 150 VC: • CHAT 150 and Cable to Video Conference System

Accessory Part numbers:

• 860-156-230L CHAT 150 VC Accessory Kit: • Includes Video Conferencing Breakout Box, Power Adapter, International Power Clips, RCA Connection Cable, 25’ Link Cable
• 860-156-222L CHAT 150 Avaya Accessory Kit: • Includes Breakout Box for 2410, 2420, 4610 and 4621 Telephone Handsets, Power Adpater, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable
• 860-156-220L CHAT 150 Cisco Accessory Kit: • Includes Breakout Box for 7940, 7960, and 7970 Telephones, Power Adapter, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable
• 910-156-225 CHATAttach expansion Kit: • Includes Cables, Power Supply and Quick Start Guide to Update Two (2) CHAT 150 Devices to CHATAttach
