Specifications

    Product Type Creative pen display
    Size 770 x 465 x 54.5 mm
    30.3 x 18.3 x 2.1 in
    Weight 19.8 lbs. without stand (9 kg)
    55.1 lbs. with stand (25.1 kg)
    Screen Size (Measured Diagonally) 68.6 cm
    27 inch
    Technology AHVA LCD (propietary IPS)
    Displayable Colors (maximum) 1.07 billion (Requires DisplayPort and video card supporting 10 bit color)
    Aspect Ratio 16:9
    Viewing Angle 178° (89°/89°) H, (89°/89°) V
    Contrast Ratio 970:1
    Brightness 330 cd/m2
    Response Rate 12ms
    Active Area 596.7 x 335.6 mm
    23.5 x 13.2 in
    Color Gamut 97% Adobe RGB
    Industry Standard Pre-sets Adobe RGB, 6500° K whitepoint default; DCI, REC 709, SRGB
    Graphics Input DisplayPort (required for 2560x 1440 resolution), HDMI (depends on computer)
    Multi-Touch No
    Pen Pro Pen
    Pressure Levels 2048, both pen tip and eraser
    Tilt Range 40 degrees
    Tilt Recognition ±60 levels
    Type Pressure-sensitive, cordless, battery-free
    Switches Tip switch, 2 side switches, eraser
    Nibs 6 standard, 3 felt, 1 stroke
    Pen Box No
    Pen Stand Yes
    Grip Latex-free silicone rubber
    Model KP-503E
    Technology Patented electromagnetic resonance method
    Resolution 5080 lpi
    ExpressKeys™ 17 customizable on ExpressKey Remote
    Touch Ring Yes, on ExpressKey™ Remote
    Touch Strips No
    Radial Menu Yes
    Precision Mode Yes
    Display Toggle Yes
    Dedicated Pan, Scroll, Zoom, Brush Size Yes
    ExpressKey™ Remote Dimensions 135 x 52 x 10 mm
    5.3 x 2.0 x .4 in
    ExpressKey™ Remote Continuous Operation Up to 160 hours
    ExpressKey™ Remote Charge Time Up to 2 hours
    Stand Adjustability Built-in stand (5° w/o legs or 20° w/ legs); optional Cintiq Ergo stand sold as accessory
    Orientation Right or left-handed use
    Size 32.3” W x 20.1” H x 15.4” D
    (820 x 510 x 390 mm)
    Cables Included Cables: DisplayPort, HDMI, USB 3.0, Micro USB (ExpressKey Remote); Adaptors: DVI-D TO HDMI, Mini DisplayPort to DisplayPort
    PC And Mac Connection USB
    Display Connection DisplayPort and HDMI
    Peripheral Connections Five USB 3.0 ports
    Power Supply Input 100 to 240 VAC, 50/60Hz
    Power Supply Output 24 VDC, 5.0A (max)
    Power Consumption 80 W, .5 W in sleep mode, .5 W off mode
    System Requirements PC: Windows®7 (32/64 bits), 8
    Mac: Mac OS X 10.8 and above

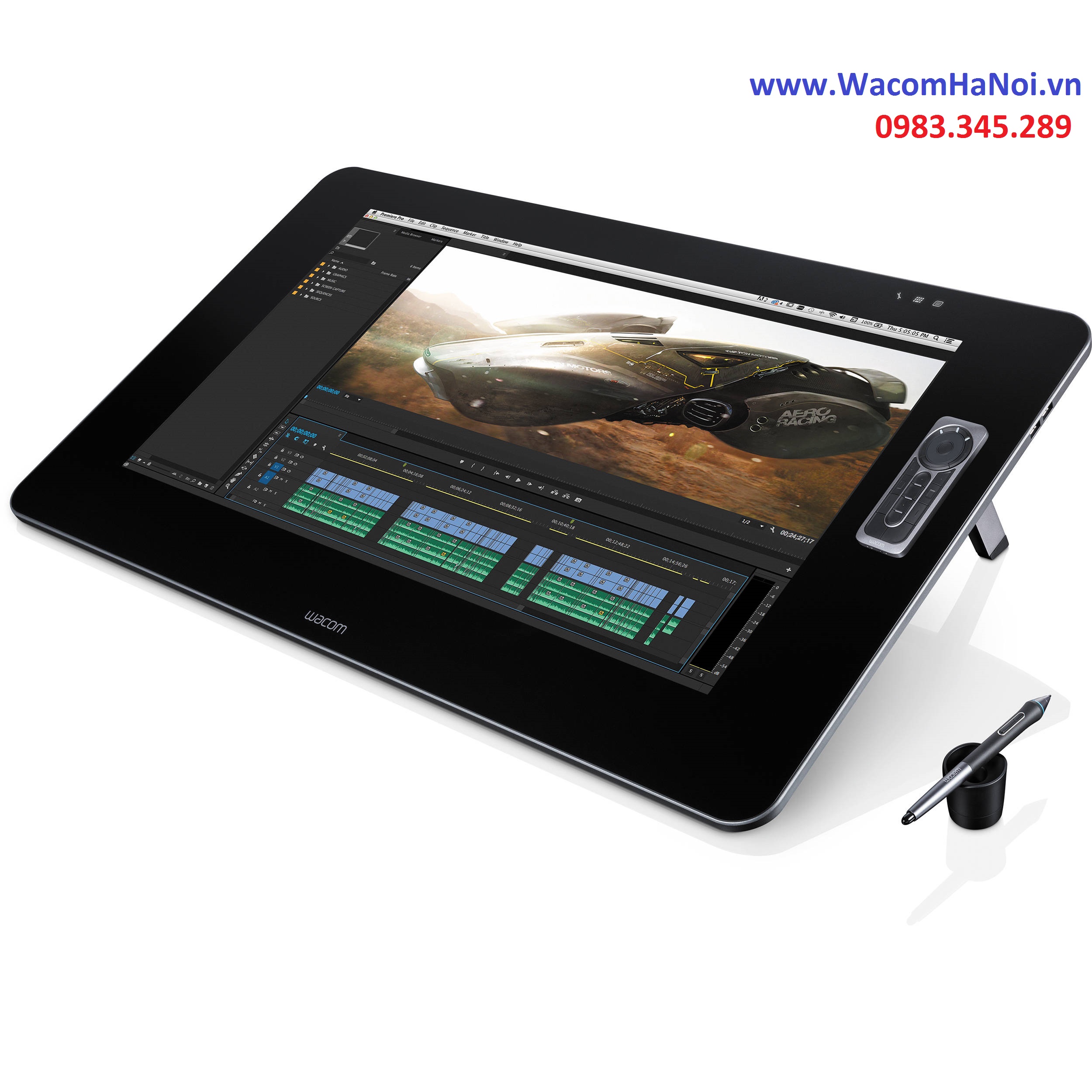

    What's Included Cintiq 27HD Creative pen display
    Pro Pen
    Pen stand with 10 replacement nibs & nib removal tool
    ExpressKey™ Remote
    Cables: DisplayPort, HDMI, USB 3.0, Micro USB (ExpressKey Remote); Adaptors: DVI-D TO HDMI, Mini DisplayPort to DisplayPort
    AC power adaptor
    Installation CD
    Quick start guide
    Certifications VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM
    Additional Accessories Airbrush, Art Pen, Classic Pen, Pro Pen
    Model Number DTK-2700
    Limited Warranty 2-years in USA and Canada, and Latin America, 1-year in Viet Nam

    Specification numbers like display size, active area and weight are approximate
