Bộ lưu điện APC Smart SRT6KXLI (6000VA6000W)
12 tháng
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
Output power capacity |
6.0kWatts / 6.0kVA |
Max Configurable Power (Watts) |
6.0kWatts / 6.0kVA |
Nominal Output Voltage |
230V |
Output Voltage Distortion |
Less than 2% |
Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz |
Other Output Voltages |
220, 240 |
Load Crest Factor |
3 : 1 |
Topology |
Double Conversion Online |
Waveform type |
Sine wave |

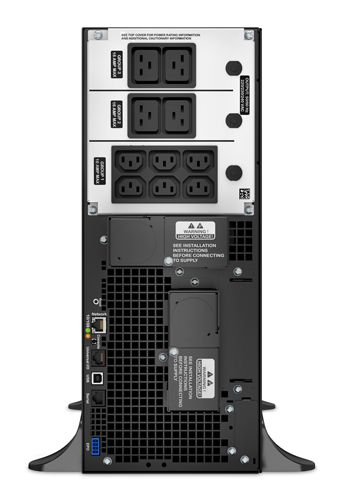

Output Connections |
(4) IEC 320 C19 (Battery Backup) (6) IEC 320 C13 (Battery Backup)
|
Bypass |
Internal Bypass (Automatic and Manual) |
Input |
|
Nominal Input Voltage |
230V |
Input frequency |
40 - 70 Hz (auto sensing) |
Input Connections |
Hard Wire 3 wire (1PH+N+G) |
Input voltage range for main operations |
160 - 275V |
Input |
Input voltage adjustable range for mains 100 - 275 (half load)V operation |
Other Input Voltages 220, 240 |
Batteries & Runtime |
|||
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte |
leakproof |
|
Typical recharge time |
1.5hour(s) |
||
Nominal Battery Voltage |
192V |
||
Replacement Battery |
|||
Expected Battery Life (years) |
3 - 5 |
||
RBC Quantity |
1 |
||
Extendable Run Time |
1 |
||
Extended Run Options |
APC-Smart-UPS-SRT-6000VA-230V (Available in Technical Tab on site) |
||
Runtime |
View Runtime Graph (Available in Technical Tab on site) View Runtime Chart (Available in Technical Tab on site) |
||
Efficiency |
View Efficiency Graph (Available in Technical Tab on site) |
Communications & Management |
|
Interface Port(s) |
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
Control panel |
Multi-function LCD status and control console |
Audible Alarm |
Audible and visible alarms prioritized by severity |
Emergency Power Off (EPO) |
Yes |
Available SmartSlot™ Interface Quantity |
1 |
Surge Protection and Filtering |
Surge energy rating 480Joules |
Physical |
|
Maximum Height |
432MM, 43.2CM |
Maximum Width |
174MM, 17.4CM |
Maximum Depth |
719MM, 71.94CM |
Net Weight |
60.0KG |
Physical |
|
Shipping weight |
67.0KG |
Shipping Height |
370MM, 37.0CM |
Shipping Width |
610MM, 61.0CM |
Shipping Depth |
960MM, 96.0CM |
Color |
Black |
Units per Pallet |
6.0 |
