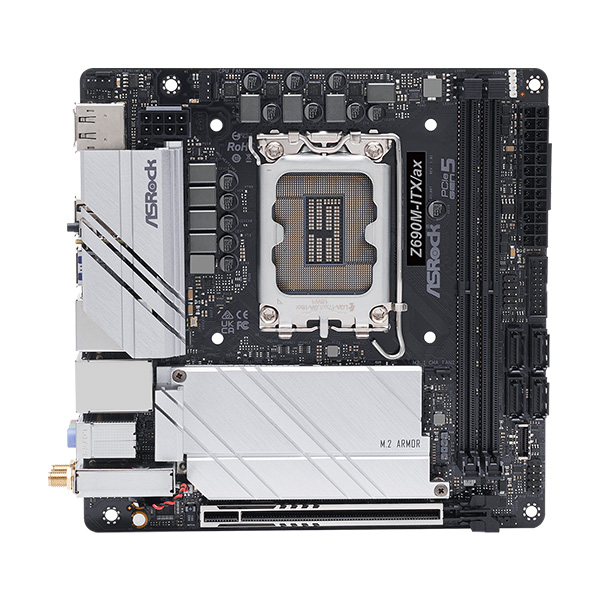

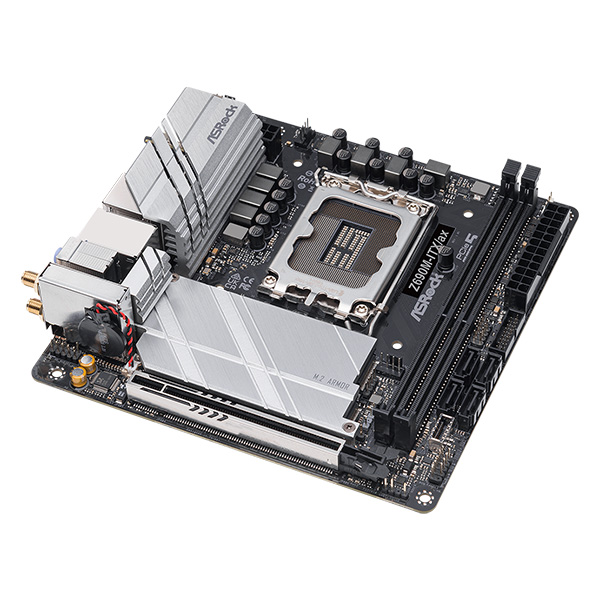

Mainboard ASROCK Z690M-ITX/ax (DDR4)
-
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12
-
Kích thước: Mini-ITX
-
Khe cắm RAM: 2 khe, tối đa 64GB
-
Khe cắm mở rộng: 1 x PCIe Gen5x16 Slot*, 1 x Vertical M.2 Socket (
-
Khe cắm ổ cứng: Hyper M.2 Socket, 4 x SATA3 6.
Kho hàng: Liên hệ
Bảo hành:
36 tháng.
Giá bán: 6,599,000vnđ
Giá khuyến mãi: 6,499,000vnđ( Giá đã có VAT )
2%
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
| Unique Feature | ASRock USB 3.2 Gen2 - ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB - High Density Glass Fabric PCB - 8 Layer PCB 2.5G LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | - Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® Z690 |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | - 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio |
| LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO |
| Slots | - 1 x PCIe Gen5x16 Slot* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Connector | - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x Chassis Fan Connector (4-pin)**** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (Supports ESD Protection) |

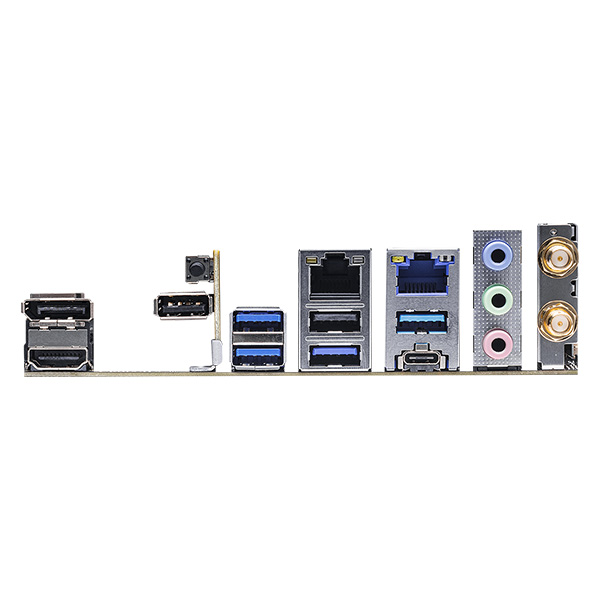

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |

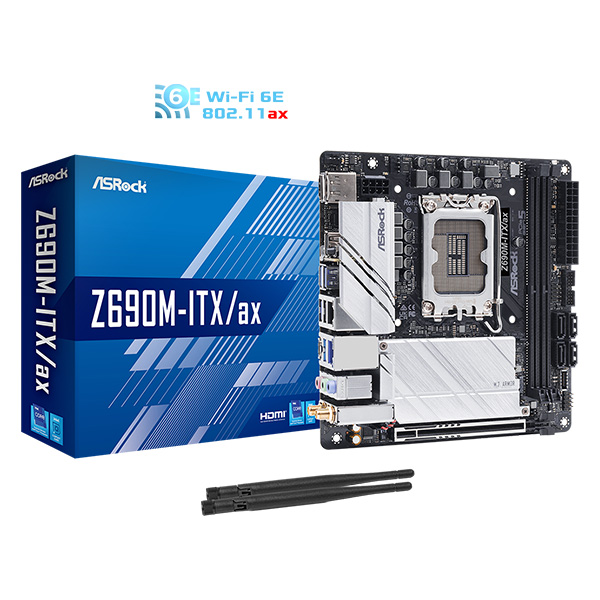

| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 2 x Screws for M.2 Sockets |
| Hardware Monitor | - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 8 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
