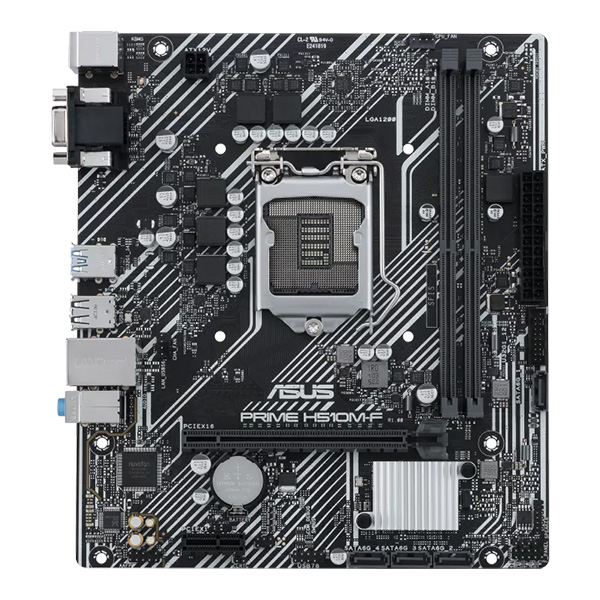

Mainboard Asus PRIME H510M-F
- Socket: LGA1200 Hỗ trợ CPU thế hệ 11 và thế hệ 10
- Kích thước: microATX
- Khe cắm RAM: 2 khe (Tối đa 64GB)
- Khe cắm mở rộng: 1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x1 slot
- Khe cắm ổ cứng: 4 x SATA 6Gb/s ports
- 36 tháng
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
THÔNG SỐ KỸ THUẬT
Sản phẩm |
Bo mạch chủ |
Tên Hãng |
ASUS |
Model |
PRIME H510M-F |
CPU hỗ trợ |
Intel |
Chipset |
H510 |
RAM hỗ trợ |
2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
Khe cắm mở rộng |
Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 mode - Intel® 10th Gen processors support PCIe 3.0 x16 mode Intel® H510 Chipset 1 x PCIe 3.0 x1 slot |
Ổ cứng hỗ trợ |
Total supports 4 x SATA 6Gb/s ports Intel® H510 Chipset 4 x SATA 6Gb/s ports |
Cổng kết nối (Internal) |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header |

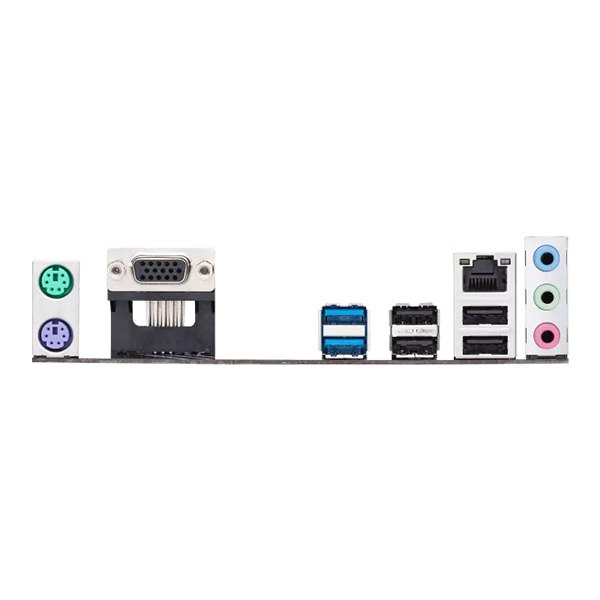

Cổng kết nối (Back Panel) |
2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
LAN / Wireless |
1 x Realtek 1Gb Ethernet |
Kích cỡ |
microATX |
