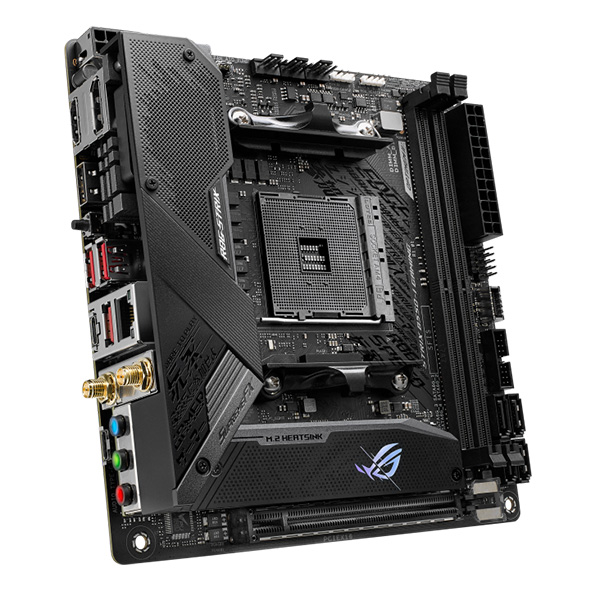

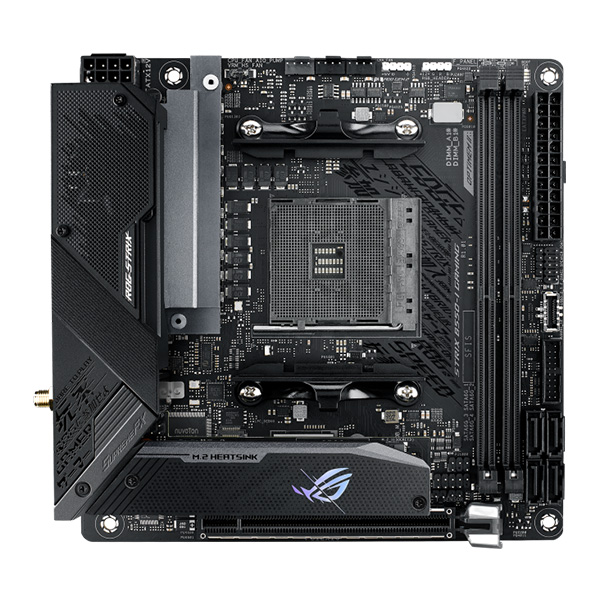

Mainboard ASUS ROG STRIX B550-I GAMING

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B550-I GAMING

Socket

AM4

Hỗ trợ CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Hỗ trợ RAM

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)

/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Cạc đồ họa

VGA onboard

Âm thanh

SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A

Cạc mạng

Intel® Wi-Fi 6 AX200

Khe cắm trong

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

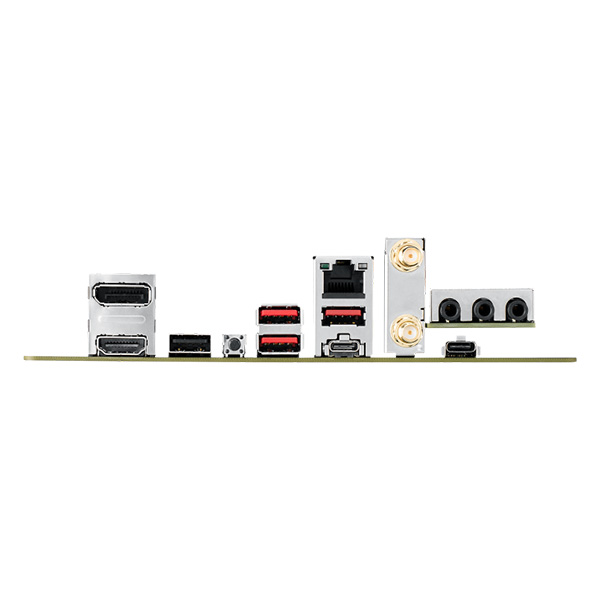

Cổng giao tiếp ngoài

4 x USB 3.2 Gen 2 (1 x USB Type-C®+3 x Type-A)

2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™1 for audio USB Type-C®)

1 x BIOS FlashBack™ Button(s)

1 x Intel® I225-V 2.5Gb Ethernet

3 x LED-illuminated audio jacks

1 x DisplayPort

1 x HDMI

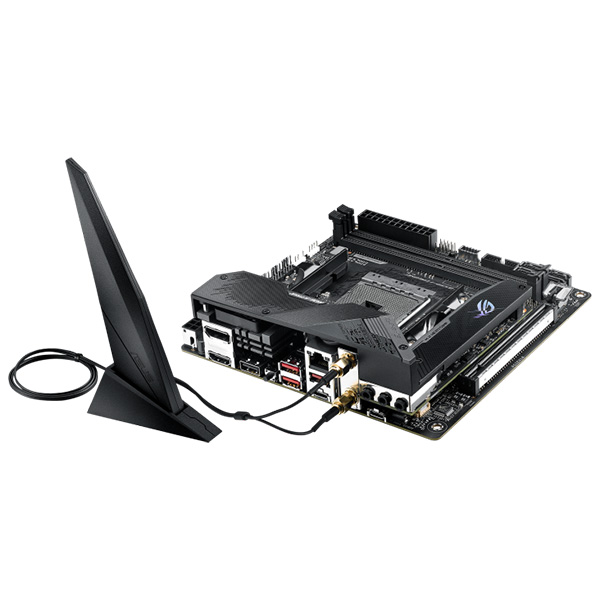

1 x ASUS Wi-Fi Module

Kích thước

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
