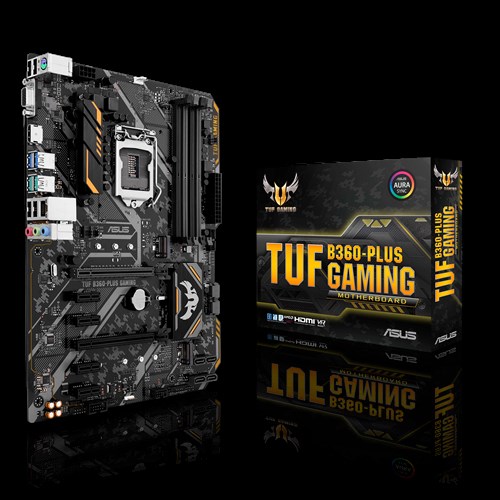

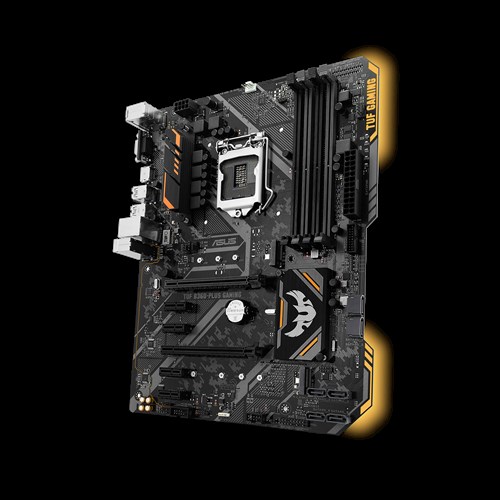

Mainboard ASUS TUF B360 PLUS GAMING-Hàng Chính Hãng

Tên gọi

ASUS TUF B360-PLUS GAMING

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

•4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

Không hỗ trợ

Khe cắm mở rộng

•1 x PCIe 3.0 x16 (x16 mode)
•2 x PCIe 3.0/2.0 x16 (x16 mode)

•4 x PCIe 3.0/2.0 x1

LAN / Wireless

Intel® I219V

Âm thanh

Realtek® ALC887 8-Channel High Definition Audio CODEC

Cổng kết nối (Internal)

1 x Aura RGB Strip Header
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 2 mode)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x AIO_PUMP connector
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x Clear CMOS jumper(s)

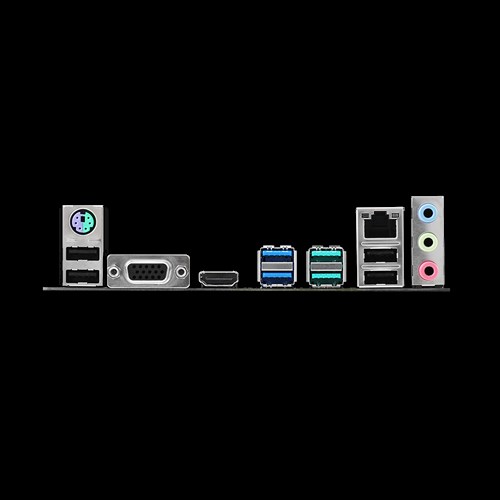

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse (combo)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps
• 2 x USB 3.1 Gen 1
• 4 x USB 2.0
• 3 x Audio Jack

Công nghệ độc quyền

ASUS TUF PROTECTION
- ASUS SafeSlot Core: Fortified PCIe with solid soldering
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS DIGI + VRM: 4+2+1 Phase digital power design
ASUS EPU :
- EPU
TUF ENGINE! Power Design :
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
CPU Installation Tool
- Three-step simplicity and safety
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

Phụ kiện đi kèm

User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x CPU installation tool
• 1 x Supporting DVD
• 1 x TUF Gaming Sticker
• 1 x TUF Certification card(s)

Hệ điều hành khuyến nghị

Windows® 10 64-bit

Chuẩn kích cỡ

ATX Form Factor
