Mainboard Gigabyte H510M-DS2V

  • Chipset: Intel H510
  • Socket: Intel LGA 1200
  • Kích thước: M-ATX
  • Số khe RAM: 2
Kho hàng: Còn hàng
Bảo hành:

- 36 tháng

Giá bán: 1,900,000vnđ
Giá khuyến mãi: 1,798,000vnđ( Giá đã có VAT )
5%

Tại sao bạn chọn Tứ Gia

  • Giao hàng miễn phí lên tới 150km
  • Thanh toán thuận tiện
  • Sản phẩm 100% chính hãng
  • Bảo hành tại nơi sử dụng
  • Giá cạnh tranh nhất thị trường
  • Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất

Thông số kỹ thuật

THÔNG SỐ KỸ THUẬT

Loại sản phẩm

Mainboard
Model H510M-DS2V

CPU hỗ trợ

  1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset

Intel® H510 Express Chipset

RAM hỗ trợ

1.    11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2.    10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
3.    10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4.    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5.    Dual channel memory architecture
6.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8.    Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

Integrated Graphics Processor-Intel® HD Graphics support:
1.    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2.    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
(Graphics specifications may vary depending on CPU support.)

Âm Thanh

1.    Realtek® Audio CODEC
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Khe cắm mở rộng

1.    1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
* Supported by 11th Generation processors only.
2.    2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)

Ổ cứng hỗ trợ

1.    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
* The M2A_SB connector shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the M2A_SB connector operates at up to x2 mode.
2.    4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

Chipset:
1.    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2.    4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers


Chipset+ 2 USB 2.0 Hubs:
1.    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Cổng kết nối (I/O bên trong)

1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    1 x CPU fan header
4.    1 x system fan header
5.    1 x RGB LED strip header
6.    4 x SATA 6Gb/s connectors
7.    1 x M.2 Socket 3 connector
8.    1 x front panel header
9.    1 x front panel audio header
10.    1 x USB 3.2 Gen 1 header
11.    2 x USB 2.0/1.1 headers
12.    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13.    1 x serial port header
14.    1 x Clear CMOS jumper

Cổng kết nối (I/O Phía sau)

1.    1 x PS/2 keyboard/mouse port
2.    1 x D-Sub port
3.    1 x DVI-D port
4.    2 x USB 3.2 Gen 1 ports
5.    4 x USB 2.0/1.1 ports
6.    1 x RJ-45 port
7.    3 x audio jacks

Bộ điều khiển I / O

iTE® I/O Controller Chip

H/W Monitoring

1.    Phát hiện điện áp
2.    Phát hiện nhiệt độ
3.    Phát hiện tốc độ quạt
4.    Cảnh báo lỗi quạt
5.    Điều khiển tốc độ quạt
* Chức năng điều khiển tốc độ quạt có được hỗ trợ hay không sẽ tùy thuộc vào bộ làm mát bạn lắp đặt.

BIOS

1.    1 x 256 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Các tính năng độc đáo

1.    Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
2.    Support for Q-Flash
3.    Support for Xpress Install

Phần mềm đóng gói

1.    Norton® Internet Security (OEM version)
2.    Realtek® 8118 Gaming LAN Bandwidth Control Utility

Hệ điều hành Windows 10 64-bit

Kích cỡ

Micro ATX Form Factor; 24.4cm x 21.0cm

Chi tiết sản phẩm

ĐẶC ĐIỂM NỔI BẬT

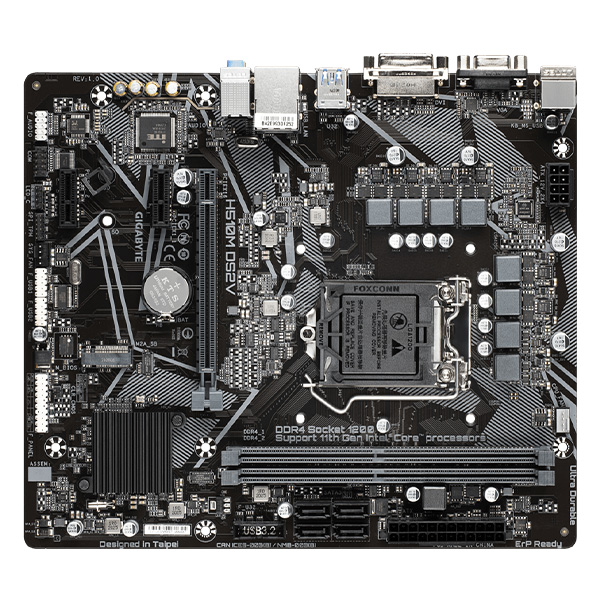

Mainboard Gigabyte H510M-DS2V

Mainboard Gigabyte H510M-DS2V là sản phẩm bo mạch chủ siêu bền với những công nghệ tiên tiến, có giá thành tương đối hợp lý, sẽ là sự lựa chọn vừa túi tiền cho những game thủ không chuyên muốn xây dựng một cấu hình đủ mạnh.

Đảm bảo vận hành trơn tru, an toàn nguồn điện

Mainboard Gigabyte H510M-DS2V hỗ trợ bộ xử lý Intel ® Core ™ thế hệ thứ 10 và 11 với các tính năng hoàn hảo cho việc "cày cuốc" của các game thủ.

Thiết kế 6 + 2 giai đoạn MOSFET RDS (bật) thấp mang đến năng lượng sạch và đồng đều hơn cho CPU, đảm bảo hoạt động ổn định trong những công việc nặng.

Chơi game, hoặc hoạt động liên tục cùng Gigabyte H510M-DS2V mà không lo bị quá nhiệt với Smart Fan 6, người dùng có thể đảm bảo rằng máy tính luôn duy trì trạng thái chơi game liền mạch trong khi các linh kiện vẫn được làm mát. Smart Fan 6 với 4 cảm biến nhiệt cho phép người dùng hoán đổi các đầu quạt để làm mát các vị trí tăng nhiệt trên bo mạch chủ. Không chỉ vậy, với Smart Fan còn có 2 đầu quạt lai hỗ trợ cả quạt thường và quạt làm mát bằng chất lỏng.

Tận hưởng chất lượng âm thanh chơi game chân thực với tụ âm thanh cao cấp. Những tụ điện chất lượng cao này giúp mang lại âm thanh có độ phân giải cao và độ trung thực cao để mang lại hiệu ứng môi trường âm thanh chân thật nhất cho game thủ.

Chơi game mượt mà với băng thông siêu tốc nhờ công nghệ Realtek 8118 LAN ưu tiên mạng cho trò chơi, ứng dụng yêu thích của game thủ.

Bền bỉ cùng năm tháng

Gigabyte H510M-DS2V có đầu nối nguồn 8 chân Solid Pin Power được mạ lớp bảo vệ chắc chắn, mang lại nguồn điện ổn định cho các linh kiện khác, với ưu điển diện tích tiếp xúc lớn hơn, lượng kim loại dẫn điện nhiều hơn để duy trì công suất ổn định, diêu bền có tuổi thọ cao hơn.

Thiết kế Anti-Sulfur chống lại sự ăn mòn của các hợp chất lưu huỳnh trong không khí xuyên qua các điẹn trở cực nhỏ trên bo mạch chủ, giảm tuổi thọ của sản phẩm.
