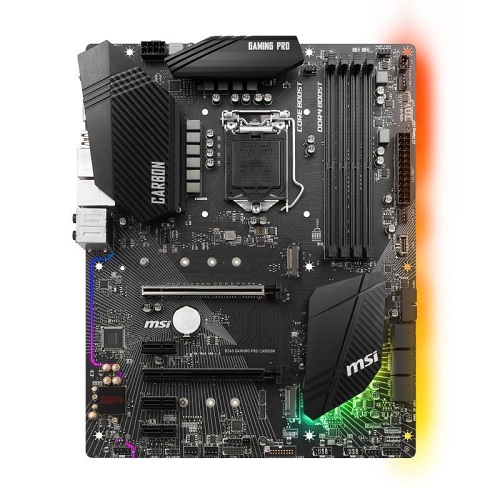

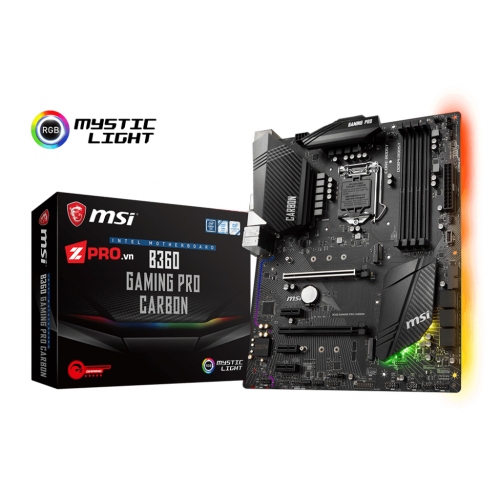

Mainboard MSI B360 GAMING PRO CARBON-Hàng Chính Hãng

Tên gọi

MSI B360 GAMING PRO CARBON

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

Công nghệ đa GPU

• AMD^® CrossFire™ Technology

Khe cắm mở rộng

• 2 x PCI Express 3.0 x16 Slots
• 3 x PCI Express 3.0 x1 Slots

LAN / Wireless

• Intel® I219-V Gigabit LAN controller


Âm thanh

• Realtek® ALC1220 Codec


Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 6 x SATA 6Gb/s connectors

• 1 x USB 3.1 Gen 2 Type-C connector

• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

• 1 x 4-pin CPU fan connector

• 1 x 4-pin water pump fan connector

• 5 x 4-pin system fan connectors

• 1 x Front panel audio connector

• 2 x Front panel connectors

• 1 x 5050 RGB LED strip 12V connector (JRGB1)

• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)

• 1 x CORSAIR connector (JCORSAIR1)

• 1 x TPM module connector

• 1 x Chassis Intrusion co

Cổng kết nối (Back Panel)

• PS/2 Combo Port

• USB 3.1 Gen1

• LAN Port

• HD Audio Connectors

• USB 2.0 Port

• DisplayPort

• USB 3.1 Gen2 Type A + C

• HDMI Port

• USB 3.1 Gen1

• Optical S/PDIF OUT

Công nghệ độc quyền

• DDR4 Boost
• Turbo M.2
• PCI-E Steel Armor
• Heavy plated heatsinks
• Audio Boost

Phụ kiện đi kèm

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• ATX Form Factor
