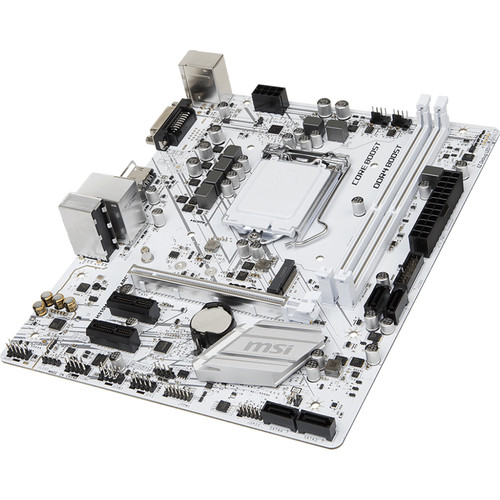

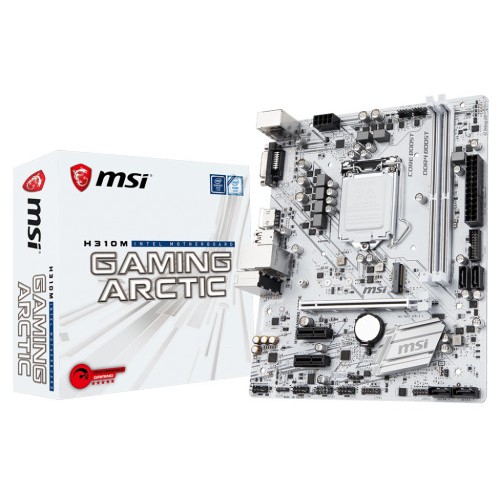

Mainboard MSI H310M GAMING ARCTIC-Hàng Chính Hãng

Tên gọi

MSI H310M GAMING ARCTIC

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® B310

Bộ nhớ (RAM)

• 2 x DDR4 memory slots, support up to 32GB

• Supports DDR4 2400/ 2133 MHz (by JEDEC)¹

• Supports DDR4 2400/ 2133 (by XMP OC)¹

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

• Không hỗ trợ

Khe cắm mở rộng

• 1 x PCI Express 3.0 x16 Slots
• 2 x PCI Express 3.0 x1 Slots

LAN / Wireless

• Intel I219-V Gigabit LAN controller

Âm thanh

• Realtek® ALC887 Codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 4 x SATA 6Gb/s connectors

• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)

• 1 x 4-pin CPU fan connector

• 1 x 4-pin system fan connector

• 1 x Front panel audio connector

• 1 x Serial port connector

• 2 x Front panel connectors

• 1 x TPM module connector

• 1 x Chassis Intrusion connector

• 1 x LED connector

• 1 x Clear CMOS jumper

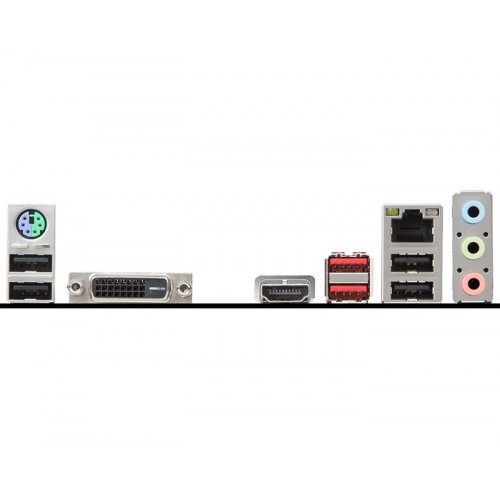

Cổng kết nối (Back Panel)

• PS/2 Combo Port

• LAN Port

• HD Audio Connectors

• USB 2.0 Port

• DVI-D Port

• HDMI

• USB 3.1 Gen1 Port

• USB 2.0 Port

Công nghệ độc quyền

• Core Boost
Optimized layout and design to support more cores

• M.2 Slot
NVMe support, up to 20 Gb/s using PCI-Express Gen2

• DDR4 Boost
Optimized traces and isolated memory circuitry

• H310 Chipset
Supports Intel 8 th Gen processors

• PCI-E Steel Armor
Protecting VGA cards against bending and EMI

• Audio Boost
Optimized gaming audio using best components

Phụ kiện đi kèm

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
