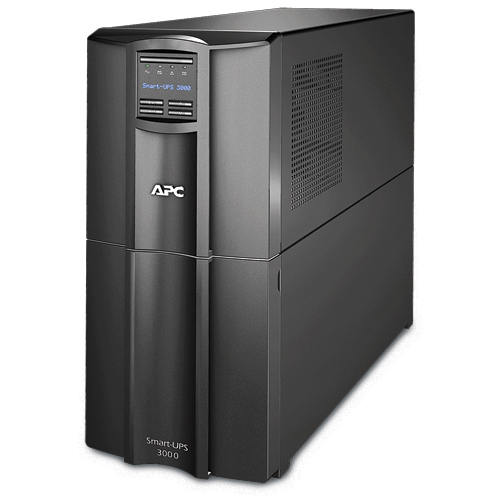

Bộ lưu điện APC Smart 3000VA LCD 230V (SMT3000I)-Hàng Chính Hãng

Output

• Output power capacity

  2.7 KWatts / 3.0 kVA

• Max Configurable Power (Watts)

  2.7 KWatts / 3.0 kVA

• Nominal Output Voltage

  230V

• Output Voltage Note

  Configurable for 220 : 230 or 240 nominal output voltage

• Output Voltage Distortion

  Less than 5% at full load

• Output Frequency (sync to mains)

  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

• Topology

  Line Interactive

• Waveform type

  Sine wave

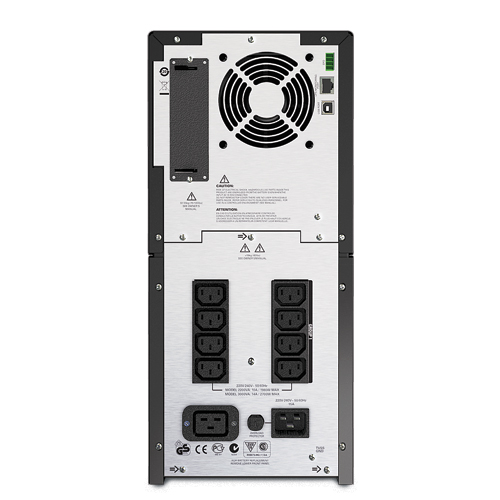

• Output Connections

  (8) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)

  (1) IEC 320 C19 (Battery Backup)

• Transfer Time

  2ms typical

• Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

• Input voltage range for main operations

  160 - 286V

• Input voltage adjustable range for mains operation

  151 - 302V

• Number of Power Cords

  1

• Other Input Voltages

  220, 240

• Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  3hour(s)

• Replacement Battery

  RBC55

• Expected Battery Life (years)

  3 - 5

• RBC Quantity

  1

• Extendable Run Time

  1

• Runtime

  View Runtime Graph

  View Runtime Chart

• Efficiency

  View Efficiency Graph

• Communications & Management

• Interface Port(s)

  SmartSlot , USB

• Control panel

  Multi-function LCD status and control console

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : configurable delays

• Emergency Power Off (EPO)

  Yes

• Available SmartSlot™ Interface Quantity

  1

• Surge Protection and Filtering

• Surge energy rating

  365Joules

• Filtering

  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

• Physical

• Maximum Height

  435mm , 43.5cm

• Maximum Width

  197mm , 19.7cm

• Maximum Depth

  544mm , 54.4cm

• Net Weight

  52.5kg

• Shipping weight

  63.7kg

• Shipping Height

  699mm , 69.9cm

• Shipping Width

  381mm , 38.1cm

• Shipping Depth

  762mm , 76.2cm

• Color

  Black

• Units per Pallet

  9.0

• Environmental

• Operating Environment

  0 - 40 °C

• Operating Relative Humidity

  0 - 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 - 45 °C

• Storage Relative Humidity

  0 - 95 %

• Storage Elevation

  0-15000meters

• Audible noise at 1 meter from surface of unit

  53.0dBA

• Online thermal dissipation

  375.0BTU/hr

• Conformance

• Approvals

  CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

• Standard warranty

  3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

• Sustainable Offer Status

• RoHS

  Compliant

• REACH

  REACH: Contains No SVHCs

• PEP

  Available in Documentation tab

• EOLI

  Available in Documentation tab

• Other Environmental Compliance

  China RoHS
