Bộ lưu điện APC Smart SMC1500I (1500VA 900W)-Hàng Chính Hãng

Output

• Output power capacity

  900Watts / 1.5 kVA

• Max Configurable Power (Watts)

  900Watts / 1.5 kVA

• Nominal Output Voltage

  230V

• Output Voltage Distortion

  Less than 5% at full load

• Output Frequency (sync to mains)

  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

• Topology

  Line Interactive

• Waveform type

  Sine wave

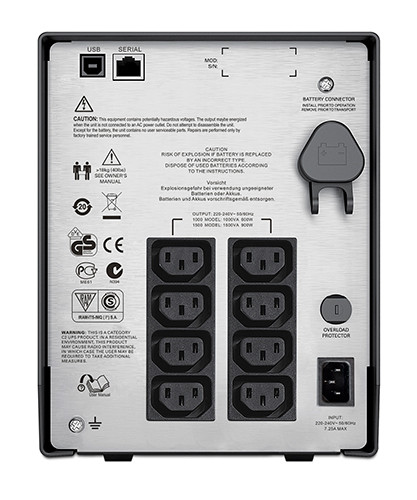

• Output Connections

  (8) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C14

• Input voltage range for main operations

  180 - 287V

• Input voltage adjustable range for mains operation

  170 - 300V

• Other Input Voltages

  220, 240

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  3hour(s)

• Replacement Battery

  RBC6

• Expected Battery Life (years)

  3 - 5

• RBC Quantity

  1

• Runtime

  View Runtime Graph

  View Runtime Chart

• Efficiency

  View Efficiency Graph

Communications & Management

• Interface Port(s)

  USB

• Control panel

  Multi-function LCD status and control console

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : configurable delays

• Emergency Power Off (EPO)

  --

Surge Protection and Filtering

• Surge energy rating

  459Joules

• Filtering

  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height

  219mm , 21.9CM

• Maximum Width

  171mm , 17.1CM

• Maximum Depth

  439mm , 43.9CM

• Net Weight

  24.09KG

• Shipping weight

  27.23KG

• Shipping Height

  376mm , 37.6CM

• Shipping Width

  328mm , 32.8CM

• Shipping Depth

  595mm , 59.5CM

• Color

  Black

• Master Carton Units

  1.0

• Units per Pallet

  18.0

Environmental

• Operating Temperature

  0 - 40 °C

• Operating Relative Humidity

  0 - 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 - 45 °C

• Storage Relative Humidity

  0 - 95 %

• Storage Elevation

  0-15000meters

• Audible noise at 1 meter from surface of unit

  45.0dBA

• Online thermal dissipation

  135.0BTU/hr

Conformance

• Approvals

  C-tick, CE, CSA, GOST, UL 1778, VDE

• Standard warranty

  2 years repair or replace

Sustainable Offer Status

• RoHS

  Compliant

• REACH

  REACH: Contains No SVHCs
