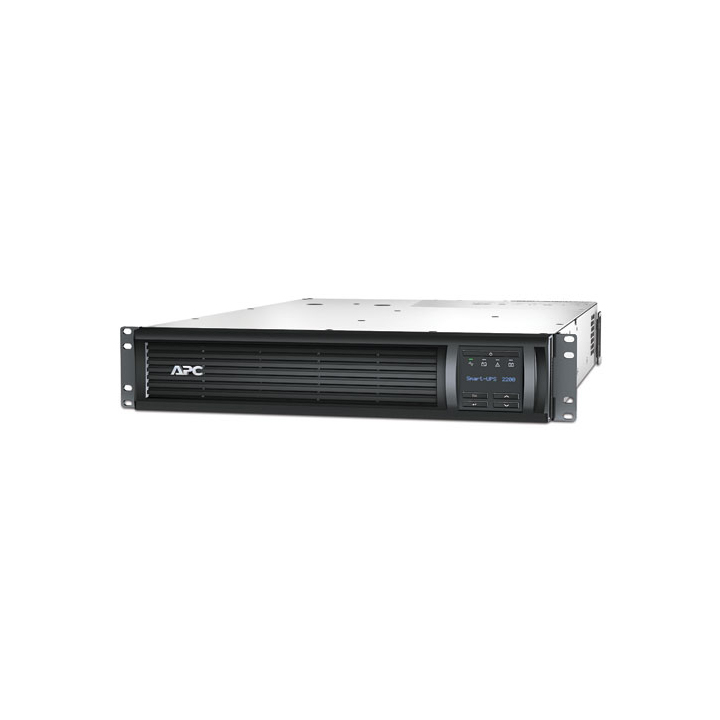

Bộ lưu điện APC SMT2200RMI2U Smart 2200VA LCD RM 2U 230V

Output

• Output power capacity

  1.98 KWatts / 2.2 kVA

• Max Configurable Power (Watts)

  1.98 KWatts / 2.2 kVA

• Nominal Output Voltage

  230V

• Output Voltage Note

  Configurable for 220 : 230 or 240 nominal output voltage

• Output Frequency (sync to mains)

  50/60Hz +/- 3 Hz

• Other Output Voltages

  220, 240

• Topology

  Line Interactive

• Waveform type

  Sine wave

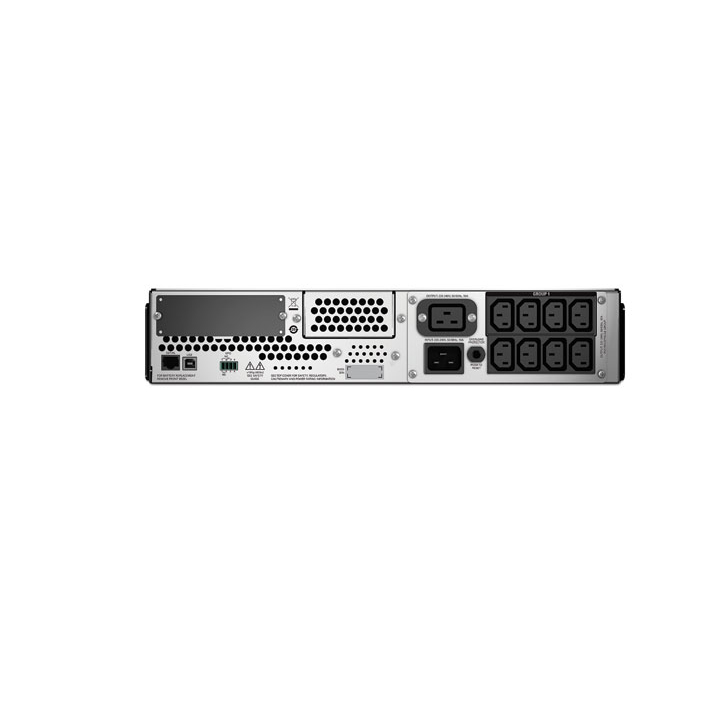

• Output Connections

  (8) IEC 320 C13 (Battery Backup)

  (3) IEC Jumpers (Battery Backup)

  (1) IEC 320 C19 (Battery Backup)

• Transfer Time

  4ms typical : 8ms maximum

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

• Cord Length

  2meters

• Input voltage range for main operations

  160 - 286V

• Input voltage adjustable range for mains operation

  151 - 302V

• Number of Power Cords

  1

• Other Input Voltages

  220, 240

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  3hour(s)

• Replacement Battery

  RBC43

• Expected Battery Life (years)

  3 - 5

• RBC Quantity

  1

• Runtime

  View Runtime Graph

  View Runtime Chart

• Efficiency

  View Efficiency Graph

Communications & Management

• Interface Port(s)

  USB

• Control panel

  LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : configurable delays

• Available SmartSlot™ Interface Quantity

  1

Surge Protection and Filtering

• Surge energy rating

  375Joules

Physical

• Maximum Height

  86mm , 8.6CM

• Maximum Width

  480mm , 48.0CM

• Maximum Depth

  683mm , 68.3CM

• Rack Height

  2U

• Net Weight

  42.31KG

• Shipping weight

  49.73KG

• Shipping Height

  254mm , 25.4CM

• Shipping Width

  600mm , 60.0CM

• Shipping Depth

  980mm , 98.0CM

• Units per Pallet

  8.0

Environmental

• Operating Temperature

  0 - 40 °C

• Operating Relative Humidity

  0 - 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 - 45 °C

• Storage Relative Humidity

  0 - 95 %

• Storage Elevation

  0-15000meters

• Audible noise at 1 meter from surface of unit

  55.0dBA

• Online thermal dissipation

  215.0BTU/hr
