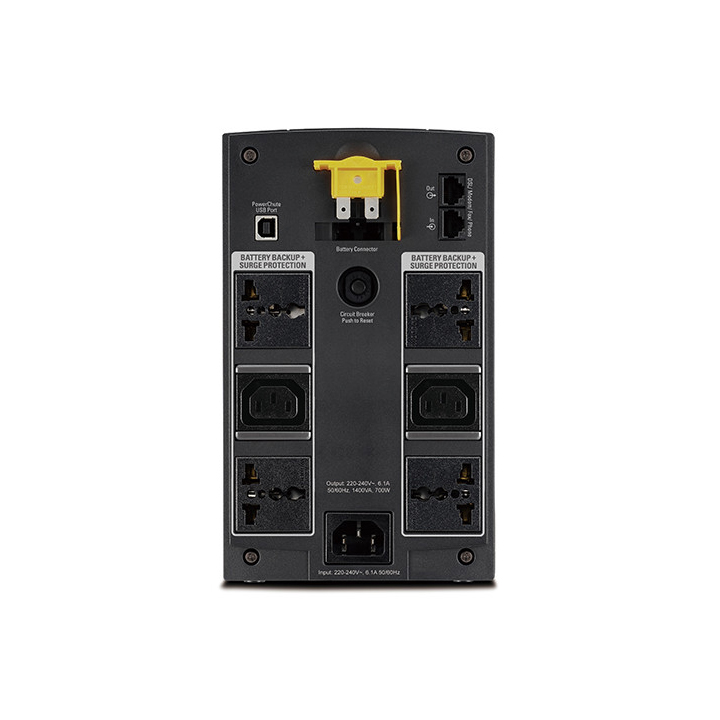

Bộ lưu điện Line Interactive APC BX1400U-MS (1400VA/ 700W)-Hàng Chính Hãng

BX1400U-MS Features

APC Back-UPS 1400VA, 230V, AVR, Universal and IEC Sockets

• Automatic restart of loads after UPS shutdown

  Automatically starts up the connected equipment upon the return of utility power.

• Automatic self-test

  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

• Automatic Voltage Regulation (AVR)

  Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

• Resettable circuit breaker

  Easy recovery from overloads; no need to replace a fuse.

• Telephone dataline surge protection

  Provides protection of connected equipment from power surges traveling on telephone lines.

• USB connection

  Use your PC to access additional power protection and management features for your UPS via a USB Port.

Back-UPS Features & Benefits

Marketing Features

• Battery-protected and surge-only outlets

  Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Manageability

• Audible alarms

  Provides notification of changing utility power and UPS power conditions

• LED status display

  Quickly understand unit and power status with visual indicators.

Safety

• Safety-agency approved

  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Availability

• Intelligent battery management

  Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Battery failure notification

  Provides early-warning fault analysis on batteries enabling timely preventive maintenance

• Automatic self-test

  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Protection

• Surge only outlets

  Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

• Battery and surge protected outlets

  Back up and protect your hardware and data during power outages, surges and spikes.

Output

• Output power capacity

  700Watts / 1.4 kVA

• Max Configurable Power (Watts)

  700Watts / 1.4 kVA

• Nominal Output Voltage

  230V

• Output Frequency (sync to mains)

  50/60 Hz +/-1 Hz

• Output Frequency (not synced)

  50/60 Hz +/-1 Hz

• Topology

  Line Interactive

• Waveform type

  Stepped approximation to a sinewave

• Output Connections

  (2) IEC 320 C13 (Battery Backup)

• Transfer Time

  8ms typical : 10 ms maximum

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C14, NEMA 5-15P

• Cord Length

  1.22meters

• Input voltage range for main operations

  150 - 280 V

• Number of Power Cords

  2

• Type of Input Protection Required

  3-pole breaker

• Maximum Input Current

  6.0A

• Input Power Factor at Full Load

  0.5

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Included Battery Modules

  1

• Typical recharge time

  8hour(s)

• Replacement Battery

  APCRBC113

• Expected Battery Life (years)

  2 - 5

• Runtime

  View Runtime Graph

  View Runtime Chart

• Efficiency

  View Efficiency Graph

Communications & Management

• Control panel

  LED status display with On Line : On Battery : Replace Battery and Overload indicators

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating

  273Joules

• Data Line Protection

  RJ-11 Modem/Fax protection

Physical

• Maximum Height

  215mm , 21.5CM

• Maximum Width

  130mm , 13.0CM

• Maximum Depth

  336mm , 33.6CM

• Net Weight

  12.0KG

• Shipping weight

  12.94KG

• Shipping Height

  295mm , 29.5CM

• Shipping Width

  245mm , 24.5CM

• Shipping Depth

  440mm , 44.0CM

• Color

  Black

Environmental

• Operating Temperature

  0 - 40 °C

• Operating Relative Humidity

  0 - 95% non-condensing %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 - 45 °C

• Storage Relative Humidity

  0 - 95% non-condensing %

• Storage Elevation

  0-9000meters

• Audible noise at 1 meter from surface of unit

  45.0dBA

Conformance

• Equipment protection policy

  No EPP for ASEAN

• Standard warranty

  2 years repair or replace

Sustainable Offer Status

• RoHS

  Compliant

• REACH

  REACH: Contains No SVHCs
