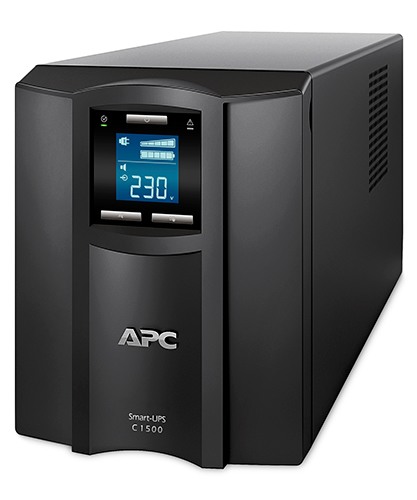

Bộ lưu điện Line Interactive APC Smart SMT1500I (1500VA1000W)-Hàng Chính Hãng
- - Công suất: 1500VA
- - Cổng giao tiếp: SmartSlot , USB
12 tháng
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
Sản phẩm | Bộ lưu điện |
Hãng sản xuất | APC |
Model | Smart SMT1500I (1500VA/1000W) |
Công nghệ | Line Interactive |
Công suất | (1500VA/1000W) |
Điện áp vào | 160 - 286V |
Điện áp ra | 230V |
Tần số nguồn vào | 50/60 Hz +/- 3 Hz (auto sensing) |
Cổng giao tiếp | SmartSlot , USB |
Mô tả khác | Control panel Multi-function LCD status and control console |
Kích thước | 219 x 171 x 439 mm |
Trọng lượng | 24.09 kg |
Chi tiết sản phẩm
Output
-
Output power capacity
1.0 KWatts / 1.5 kVA -
Max Configurable Power (Watts)
1.0 KWatts / 1.5 kVA -
Nominal Output Voltage
230V -
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage -
Output Voltage Distortion
Less than 5% at full load -
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal -
Other Output Voltages
220, 240 -
Topology
Line Interactive -
Waveform type
Sine wave -

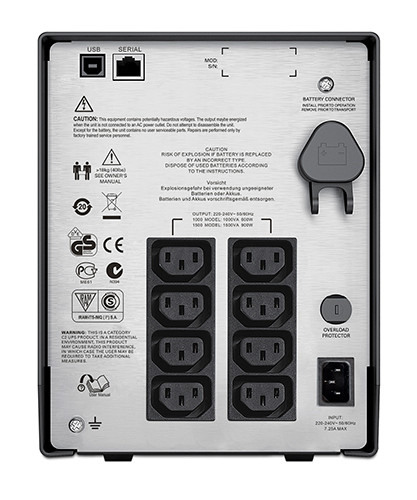

Output Connections
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Input
-
Nominal Input Voltage
230V -
Input frequency
50/60 Hz +/- 3 Hz (auto sensing) -
Input Connections
IEC-320 C14 -
Cord Length
1.83meters -
Input voltage range for main operations
160 - 286V -
Input voltage adjustable range for mains operation
151 - 302V -
Number of Power Cords
1 -
Other Input Voltages
220, 240
Batteries & Runtime
-
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof -
Typical recharge time
3hour(s) -
Replacement Battery
RBC7 -
Expected Battery Life (years)
3 - 5 -
RBC Quantity
1 -
Runtime
View Runtime Graph
-
Efficiency
View Efficiency Graph
Communications & Management
-
Interface Port(s)
SmartSlot , USB -
Control panel
Multi-function LCD status and control console -
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm -
Emergency Power Off (EPO)
-- -
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
-
Surge energy rating
459Joules -
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
-
Maximum Height
219mm , 21.9CM -
Maximum Width
171mm , 17.1CM -
Maximum Depth
439mm , 43.9CM -
Net Weight
24.09KG -
Shipping weight
27.23KG -
Shipping Height
376mm , 37.6CM -
Shipping Width
328mm , 32.8CM -
Shipping Depth
595mm , 59.5CM -
Color
Black -
Units per Pallet
12.0
Environmental
-
Operating Temperature
0 - 40 °C -
Operating Relative Humidity
0 - 95 % -
Operating Elevation
0-3000meters -
Storage Temperature
-15 - 45 °C -
Storage Relative Humidity
0 - 95 % -
Storage Elevation
0-15000meters -
Audible noise at 1 meter from surface of unit
45.0dBA -
Online thermal dissipation
135.0BTU/hr
Conformance
-
Approvals
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE -
Standard warranty
3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status
-
RoHS
Compliant -
REACH
REACH: Contains No SVHCs -
PEP
Available in Documentation tab -
EOLI
Available in Documentation tab
